Woodward Fab Heck Industries 7000 Beveler

7000 Bevel-Mill Plate Beveler

SKU: 7000

$1,795.00

Woodward Fab Heck Industries 7000 Beveler

  • 3/8″ Maximum Bevel Depth – 1/2 HP
  • Our “Work Horse”
  • Uses specially design Baldor Motors
  • Faster feed rates



Shipping will be charged extra. Choose your shipping option with our shipping calculator.
Category:

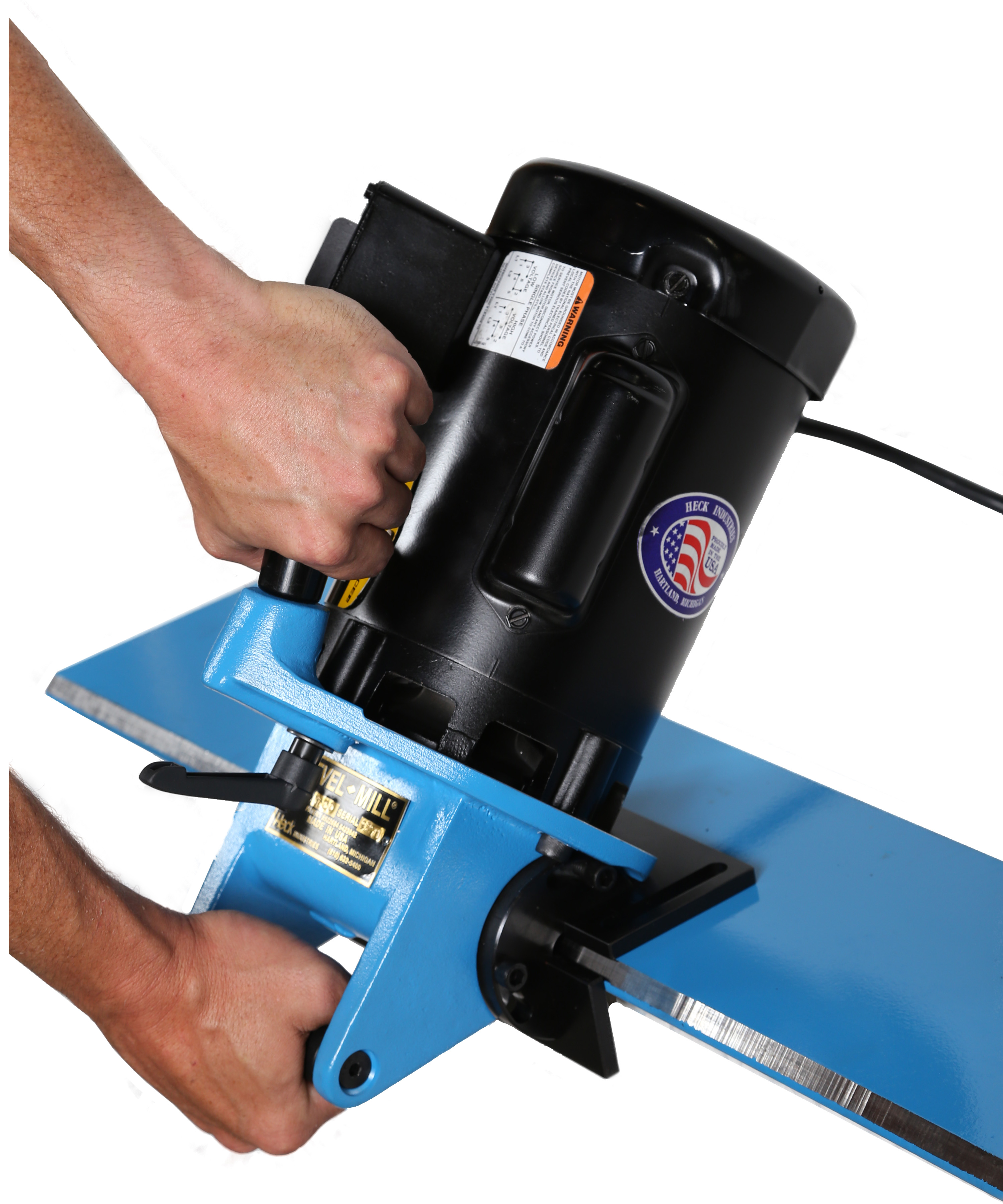

The Heck Industries 7000 Bevel-Mill Plate Beveler is an electrically powered handheld machine that provides a 3/8″ maximum burr-free bevel on most materials with a minimum thickness of 1/8″, and is made in the USA. The 1/2 hp, 110V motor enables beveling at approximately 3 feet per minute on mild steel without creating dust, fumes, or heat. It is powered using the included 6-ft. cord with a 3-prong plug. The machine’s depth of cut can be adjusted and the bevel angle can be set between 15 and 45 degrees to create a customized bevel. The attached V-block plate supports the machine on the workpiece, reducing operator strain. The beveler includes 5 square, C-5 grade carbide inserts that can each be indexed 4 times to refresh the cutter.

Specification

Model 7000
Maximum Bevel (B) 3/8″
Minimum Bevel 0
Min work piece thickness 1/8″
Bevel Angle 15 – 45°
V-Block Length 8″
Number of inserts 5
Power 1/2 hp
110 volt
Radius inserts for
corner rounding
Yes
Weight 26 lbs.
Weight 36 lbs
Dimensions 18 x 12 x 12 in
