Woodward Fab Palmgren Deburring Chamfering 82300

Palmgren Deburring Chamfering Machine 82300

SKU: 82300

$775.00

Palmgren’s line-up of edge finishing machines effectively deburr, chamfer and bevels edges on flat and square metal and plastics.

  • Abrasive Deburring
  • Deburring Chamfering
  • Bevel angle 45°
  • 3/4 horsepower, 110 Volt
  • Makes Short Work Deburring Projects. The “Go-To” Machine for Edge Finishing.
  • Maximum Bevel Depth up to 1/8″, 3/4 Horsepower, 110 Volt.



Shipping will be charged extra. Choose your shipping option with our shipping calculator.
Category:

Woodward Fab Palmgren Deburring Chamfering

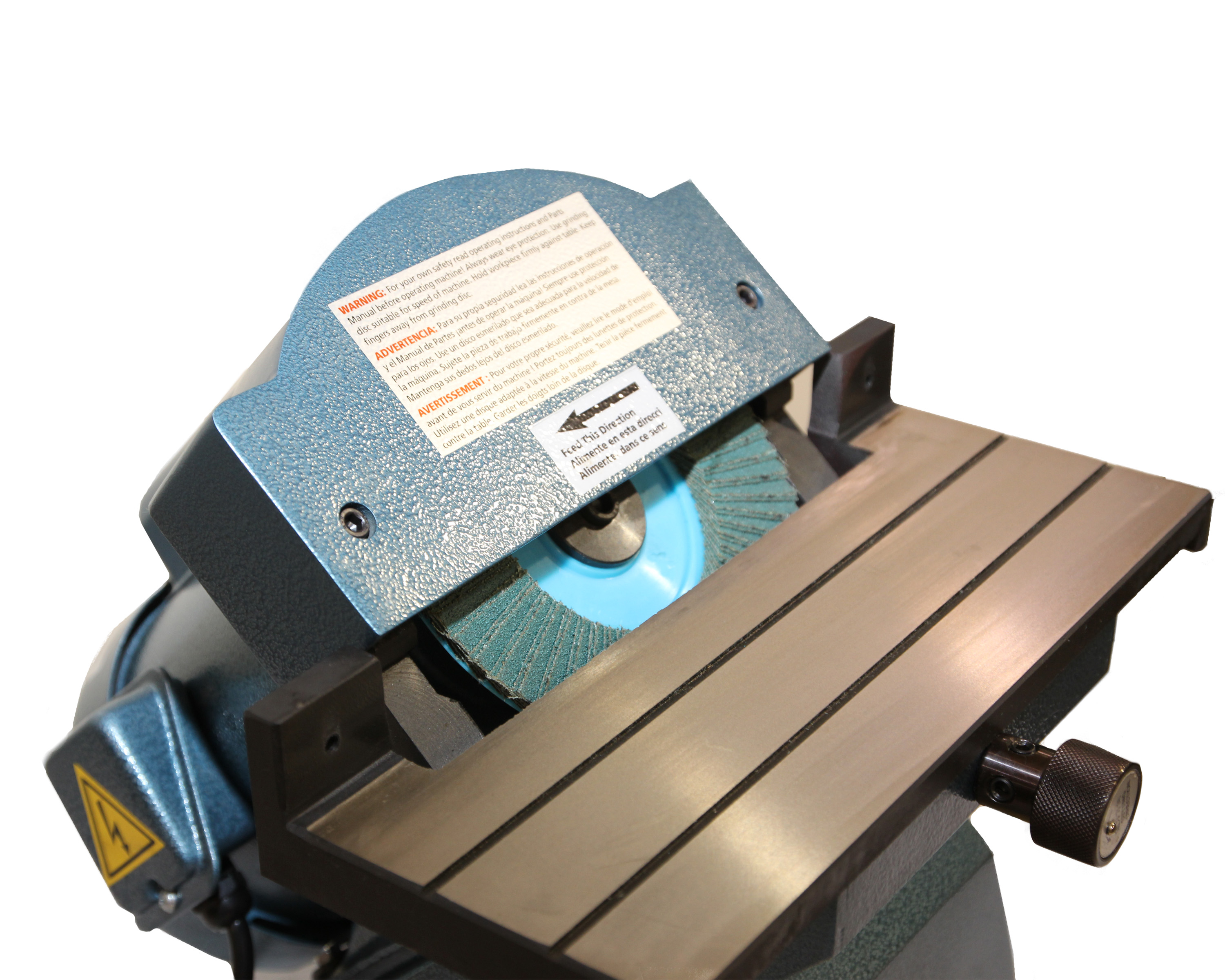

The 82300 is a specialized chamfering / deburring machine that uses a standard abrasive flap disc to provide a chamfered edge on flat and square metals and plastics. Makes short work on deburring projects and is the go to bench top machine for your fabrication and production shop. The degree of bevel is a fixed 45° and the depth of cut is adjustable up to 1/8”.

Model 82300 Bevel Mill Bench Top



Specifications 82300
Maximum Bevel Depth 1/8″
Minimum Material Thickness 1/8″
Bevel-Angle Fixed 45°
V-Block Length 12″
Number of Inserts Flap Disc Grinding Wheel
Motor ¾ hp 110V
Weight 70 lbs
Weight 70 lbs
Dimensions 21 x 15 x 17 in
